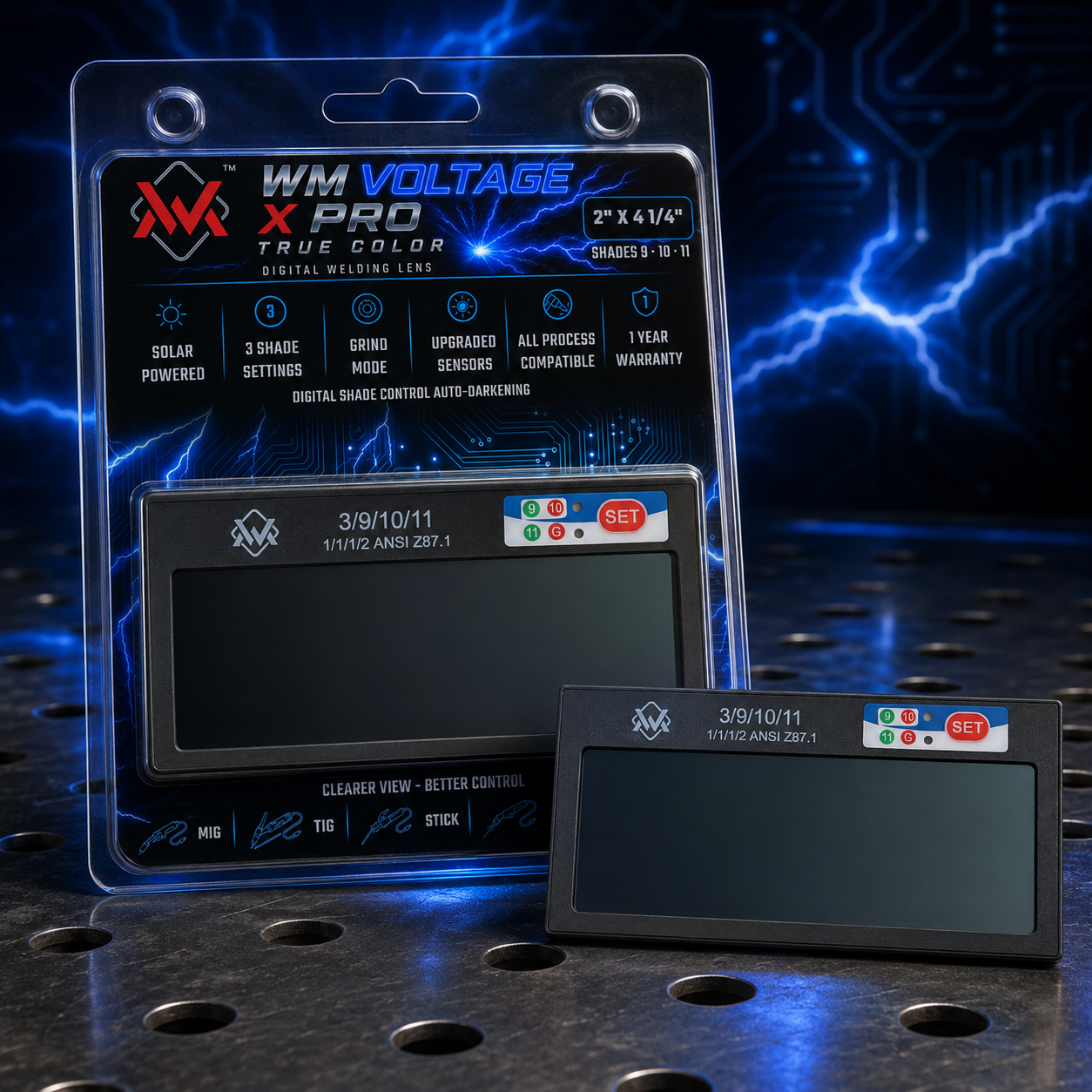

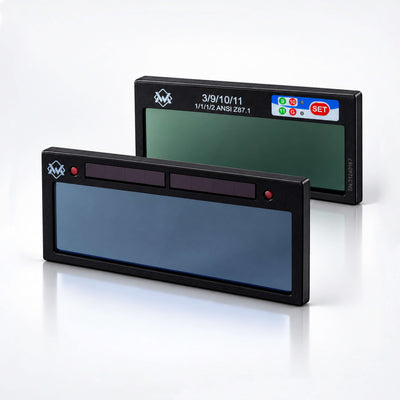

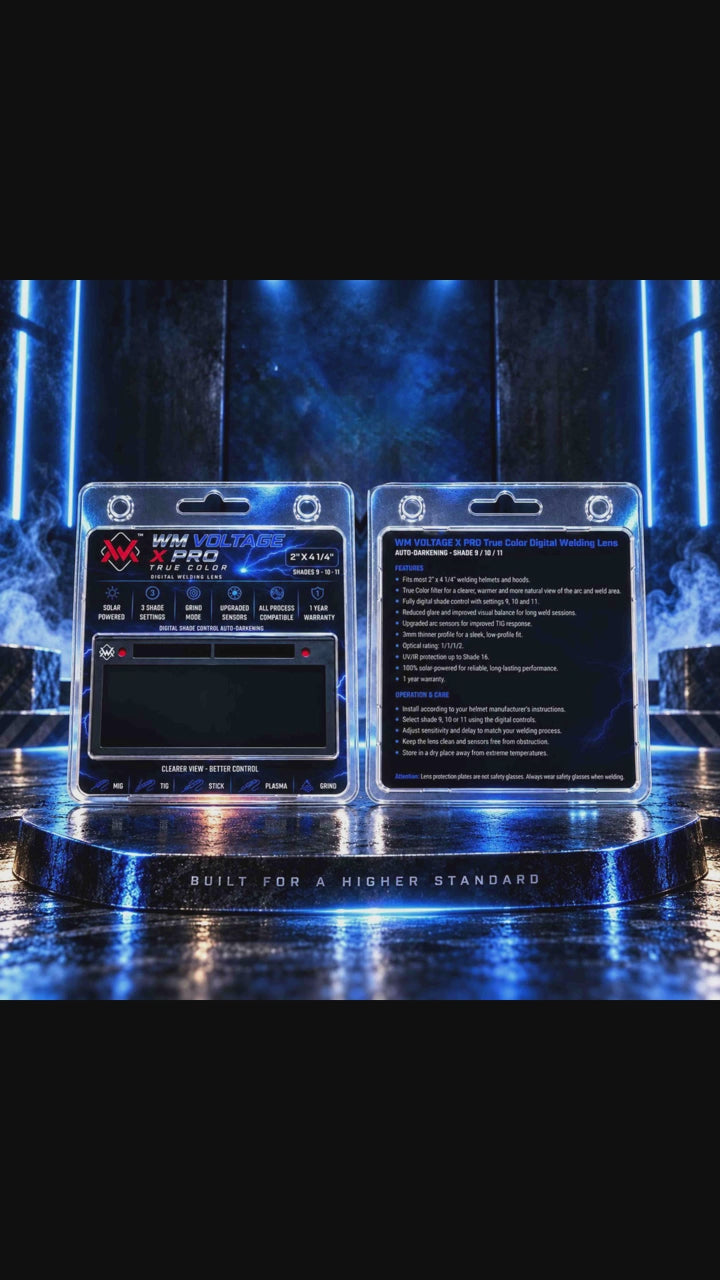

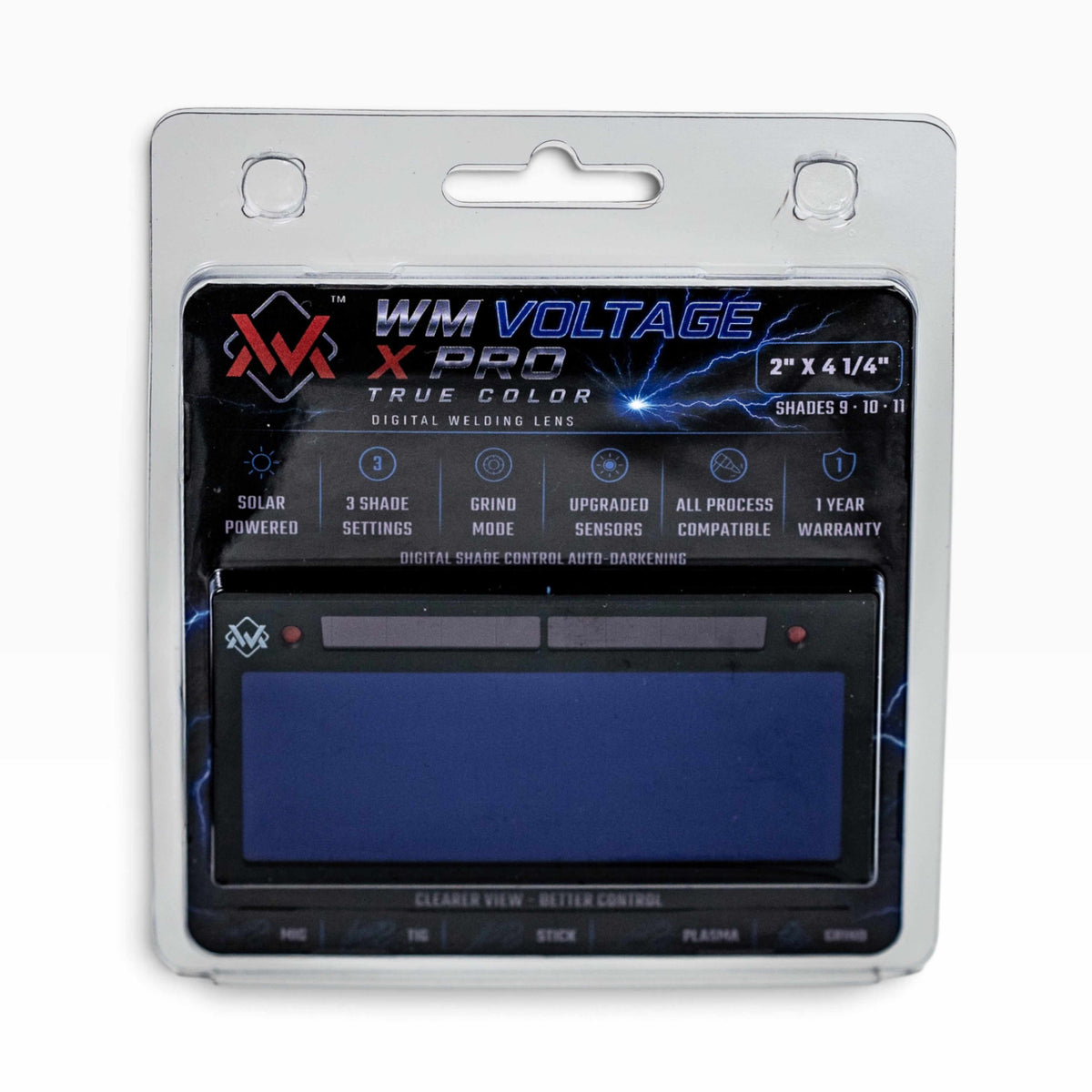

Move seamlessly between welding and grinding with the WM Voltage X Pro True Color Digital Auto-Darkening Welding Lens. Designed for welding hoods that accept a standard 2" x 4 1/4" lens cartridge, it combines digital control, multi-process versatility, and a clearer, more naturally balanced view of the work area.
The Voltage X Pro features three selectable welding shades, adjustable sensitivity and delay, and a dedicated Grind Mode for greater control across different applications. Its True Color filter and enhanced arc sensors provide improved visibility and responsive performance for MIG, TIG, Stick, plasma, and grinding work.
Key Features
- Three selectable welding shades: 9, 10, and 11
- Dedicated Grind Mode
- Fully digital shade, sensitivity, and delay controls
- True Color filter for a clearer, more natural and balanced view
- Reduced glare and improved visual balance during extended welding sessions
- Enhanced arc sensors designed for improved TIG response
- Manufacturer-rated optical classification of 1/1/1/2
- Manufacturer-rated UV/IR protection up to Shade 16
- Solar-powered operation
- Slim, low-profile design
- Multi-process compatibility
- Fits most welding hoods that accept a standard 2" x 4 1/4" lens
- 1-year warranty
Technical Specifications
- Lens type: Digital auto-darkening welding lens
- Cartridge size: 2" x 4 1/4"
- Welding shades: 9, 10, and 11
- Grind Mode: Yes
- Shade control: Digital
- Sensitivity: Adjustable
- Delay: Adjustable
- Viewing technology: True Color
- Optical classification: 1/1/1/2, manufacturer-rated
- UV/IR protection: Up to Shade 16, manufacturer-rated
- Power source: Solar-powered
- Recommended applications: MIG, TIG, Stick, plasma, and grinding
- Warranty: 1 year
Compatibility
Designed to fit most welding helmets and hoods that accept a standard 2" x 4 1/4" auto-darkening lens cartridge. Fit is not universal. Measure your hood’s lens opening and retention system before ordering.
Operation and Care
Install according to your welding helmet manufacturer’s instructions. Select shade 9, 10, or 11 and adjust sensitivity and delay for the welding process. Activate Grind Mode when performing grinding work and return the lens to the appropriate welding setting before striking an arc.
Keep the lens clean and ensure the arc sensors remain free from dust and obstruction. Store in a dry location away from extreme temperatures.
Safety Notice
The welding lens and its protective cover plates are not a substitute for safety glasses. Always wear appropriate safety glasses and other required personal protective equipment when welding or grinding.
